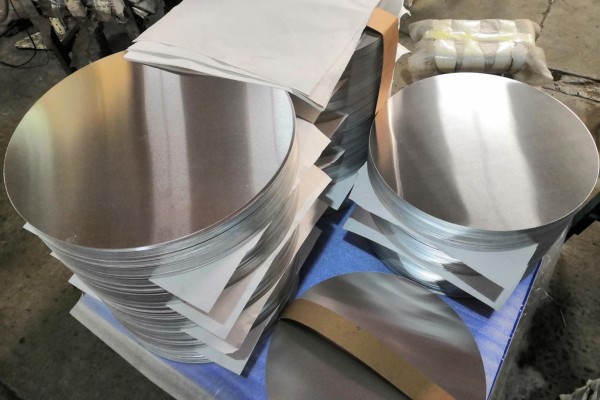

3003 Tổng quan về vòng tròn đĩa nhôm
3003 hợp kim nhôm là hợp kim nhôm-mangan. Nguyên tố hợp kim chính là mangan. Đây là loại nhôm chống gỉ được sử dụng rộng rãi nhất. Độ bền của hợp kim này không cao, nhưng nó cao hơn nhôm nguyên chất công nghiệp nói chung. Nó không thể được tăng cường bằng cách xử lý nhiệt. Nói chung là, phương pháp gia công nguội được sử dụng. Để cải thiện tính chất cơ học của nó. It has high plasticity in the annealed state, good plasticity during semi-cold work hardening, low plasticity during cold work hardening, good corrosion resistance, good weldability, and poor machinability.
3003 vòng tròn nhôm đĩa nhôm is one of the deep-processing products of the aluminum sheet&đĩa. 3003 Vòng nhôm hay còn gọi là đĩa nhôm, bánh nhôm, cu nhôm, tấm nhôm tròn, đĩa nhôm, and aluminum circle round sheet. They were named by their shape is a circle and their alloy is aluminum.
3003 Aluminum Disc Specification:
hợp kim 3003 aluminum circle for crafts details:
hợp kim: 3003 a3003 3003 ho a3003 ho 3003 h18/h24
Producing craft: cold rolling
tính khí: O-H112
độ dày: 0.4-6mm
Width: 10-1200mmSurface
Treatment: mill finish
Packaging Details: Wooden pallet, wooden box, or as customer’s request
Delivery: 25-30days
Aluminum Circle Disc Wafer Application:
It is mainly used for low load parts with high plasticity and good weldabilities working in liquid or gas medium, such as oil tank, gasoline or lubricating oil conduit, various liquid containers, and other small load parts made by deep drawing, the wire used for rivets. And also used for pot, pan, traffic signs, cookware, vân vân.
hợp kim 3003 Aluminum Circle For Crafts Chemical Composition
Aluminium Species Grade Temper Thickness
(mm) Đường kính
(mm) Mechanical Properties
Tensile Strength
MPa(N/MM2) Độ giãn dài(%)
Vòng nhôm 1050 O 1.0~6.0
Φ120~Φ650
60~110 ≥25
3003 O 1.0~8.0 Φ120~Φ650 95~130 ≥25
H14-H22 1.0~8.0 Φ120~Φ650 120~160 ≥8
3004 O 1.0~6.0 Φ120~Φ650 150~200 ≥18
8A06 O 1.0~8.0 Φ120~Φ650 ≤110 ≥30
hợp kim 3003 aluminum circle for crafts Mechanical Properties:
TEMPER THICKNESS(MM) TENSILESTRENGTH ELONGATION(%)
HO 0.3-6 60-100 ≥20
H12 0.5-6 70-120 ≥4
H14 0.5-6 85-120 ≥2
hợp kim 3003 aluminum circle sheet for crafts packing:
The aluminum circle of Nhôm Hà Nam Huawei meets the export standard. Plastic film and brown paper can be covered at customers’ needs. What’s more, a wooden case or wooden pallet is adopted to protect products from damage during delivery. There are two kinds of packaging, which are eye to wall or eye to the sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, Và 20-24 tons in 1×40′ container.
Huawei is a professional Aluminum Circle manufacturer and supplier based in China. We also offer 1000 series aluminum circle, 3000 series aluminum circle, hot rolled aluminum circle, vòng tròn nhôm cho dụng cụ nấu nướng, DC / CC aluminum circle, Aluminum Circle For Spinning, Aluminum Circle Round Plate, and more. Whenever you have a need for any of our aluminum circles, please feel free to contact us. Best service is always waiting for you!
| Product | Vòng nhôm |
| hợp kim | 3003 |
| tính khí | Ô, H12, H14, H18, H22, and H24… |
| độ dày | 0.3mm-10.0mm |
| Đường kính | 100mm-1800mm |
| Lead Time | Within 30 days after receiving the deposit |
| Packing | Standard Exporting wooden pallets |
| Material | Using high-tech machinery utilizing premium grade Aluminium Coil. Customized according to the needs and demands of the clients these can be availed at different technical specifications. |
| Surface: | Bright & smooth surface, free from defects like white rust, oil patch, edge damage. |
| Application | 3003 Aluminum Circles are used in Reflective Sign Boards, Road Furniture, Đồ dùng, Sand witch Bottom, Cooker, Non-Stick, vân vân. |
3003 Aluminum Circle Metal Chemical Properties:
hợp kim | Và | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min.A1 |
3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | – | – | – | 0.1 | – | – | – | 0.15 | 96.95-96.75 |
3003 Aluminum Circle Disc Plate Application:
3003 Aluminum Circle aluminum disc is the most widely used for kitchenware/cookware, Pressure cookers, non-stick cookware, and hard anodized cookware, Milk cans, Medical cylinders ect. aluminum circle for craft, vòng tròn nhôm cho dụng cụ nấu nướng
3003 Aluminum Circle For Hard Anodizing：
The properties of aluminum circles (or shaped blanks) make them ideal for use in a number of markets including the cookware, automotive, and lighting industries:
- Low anisotropy, which facilitates deep drawing
- Strong mechanical properties
- High and homogeneous heat diffusion
- Ability to be enameled, covered by PTFE (or others), anodized
- Good reflectivity
- High strength-to-weight ratio
- Durability and resistance to corrosion
Properties of the aluminum circle:
Aluminum circle is suitable for many markets, including cookware, automotive and lighting industries, vân vân., thanks to good product characteristics:
- Low anisotropy, which facilitates deep drawing
- Strong mechanical properties
- High and homogeneous heat diffusion
- Ability to be enameled, covered by PTFE (or others), anodized
- Good reflectivity
- High strength-to-weight ratio
- Durability and resistance to corrosion
Aluminum Circles Process
Ingot/Master Alloys — Melting Furnace – Holding Furnace — D.C. Caster — Slab —- Scalper — Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace — Final Inspection – Packing — Delivery
- Prepare the master alloys
- Melting furnace: put the alloys into the melting furnace
- D.C.cast aluminum ingot: To make the mother ingot
- Mill the aluminum ingot: to make the surface and side smooth
- Heating furnace
- Hot rolling mill: made the mother coil
- Colding rolling mill: the mother coil was rolled as the thickness you want to buy
- Punching process: become the size what you want
- Annealing furnace: change the temper
- Final inspection
- Packing: wooden case or wooden pallet
- Delivery
Quality Control
Assurance Below inspection will be done in the production.
- a. ray detection—RT;
- b. ultrasonic testing—UT;
- c. Magnetic Particle Testing-MT;
- d. penetration testing-PT;
- e. eddy current flaw detection-ET
1) Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Discoloration, Breaks, Ăn mòn, Roll Marks, Dirt Streaks, and other defects which will interfere with use.
2) Surface without black line, clean-cut, periodic stain, roller printing defects, such as other gko internal Control standards.
Aluminum discs packing:
Aluminum circles can be packed by export standards, covering with brown paper and plastic film. Finally, the Aluminium Round is fixed on a wooden pallet/wooden case.
- Put the driers side the aluminum circle, keep the products dry and clean.
- Use clean plastic paper, pack the aluminium circle, keep good sealing.
- Use the snakeskin paper, pack the surface of the plastic paper, keep good sealing.
- Kế tiếp, there are two ways of packaging: One way is wooden pallet packaging, using the crusty paper packing the surface; Another way is wooden case packaging, using the wooden case packing the surface.
- Finally, lay the steel belt on the wooden box’s surface, keeping the wooden box fastness and secure.
Aluminum circle of Henan Huawei Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ needs. What’s more, a wooden case or wooden pallet is adopted to protect products from damage during delivery. There are two kinds of packaging, which are eye to wall or eye to the sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, Và 20-24 tons in 1×40′ container.
